Blind Hole vs Through Hole: Why It Matters for Tapping

Blind Hole vs Through Hole.

Blind Hole vs Through Hole: Why It Matters for Tapping
Article-specific visualA technical explainer for this exact guide
Technical decision diagram for Blind Hole vs Through Hole: Why It Matters for Tapping: observe the damage, choose a repair path, and verify the result.
FastenerBench original technical visual — use it to understand the condition, starting method and verification step before escalating the repair.
Repair snapshotStart with the least destructive sensible method.
RepairabilityIdentification task
Difficulty1/5
Damage riskLow
Typical time5–15 min
Start withClean the part and measure diameter plus pitch

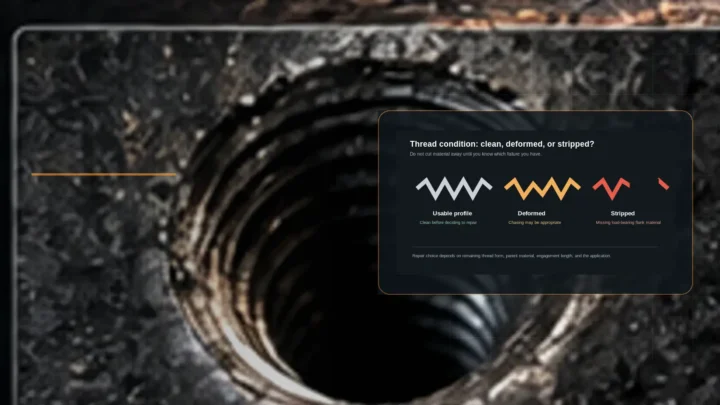

Visual diagnosisSee the geometry before you escalate
FastenerBench technical reference for this repair decision.

The first threads on many taps are chamfered and do not cut a full profile immediately. In a blind hole, that lead length plus chip space reduces the depth available for full threads.

What you’ll need

  • tap and die set
  • thread pitch gauge
  • depth gauge or caliper
  • appropriate cutting fluid for the material

Plan drill depth and thread depth separately

Before tapping, determine how much full thread engagement is actually required and how much extra depth is needed for the drill point, tap chamfer and chips. A bottoming-style tap can extend full threads closer to the bottom after a suitable starter tap, but it is not a substitute for adequate hole depth.

Quick comparison

Method Best use Watch for
Through hole Chips can exit the far side depending on tap geometry Generally easier chip management
Blind hole Hole has a bottom Needs deliberate chip evacuation and depth control

What changes in this specific case

Depth is part of the specification

A blind hole limits chip space and usable full-thread depth. Tap lead length, insert driver clearance and bottom debris all matter. Measure usable depth before choosing an insert length or assuming that a tap can simply run to the bottom.

Decision checklist

  • What exactly is resisting removal or assembly?
  • Can the condition be inspected and measured before material is removed?
  • What is the least destructive reversible step?
  • What change would be a clear stop signal?
  • Is the joint safety-critical or manufacturer-controlled?

Before reassembly or final acceptance

Before reassembly, remove chips and debris, inspect every surface changed during the repair, and confirm the replacement fastener starts squarely by hand. Do not use installation torque to force questionable threads into compatibility. Manufacturer-specified torque, lubricant, locking compound and replacement-only rules override generic guidance.

Technical decision depth

Reference information becomes useful only when it prevents a wrong physical choice. Keep nominal thread diameter, pitch or TPI, head size, length and material as separate attributes. Two fasteners can look similar and still be incompatible. When measurement is close to more than one standard size, use an undamaged mating component, gauge, drawing or manufacturer specification to break the tie rather than forcing a test fit.

Record measurements before rounding them. Caliper resolution, coating thickness, wear and damaged crests can all move a reading slightly. For a repair operation, the cost of a false match is much higher than the cost of measuring twice: a wrong tap or insert preparation permanently changes the part. Use reference charts and calculators as confirmation tools after the thread system has been identified, not as a way to make an uncertain fastener fit a convenient size.

Technical references

Use the specifications for the exact fastener, tool, lubricant, adhesive or repair system in your application. These references support the terminology and general method choices in this guide.

Use two measurements, not one guess

Fastener identification is most reliable when diameter and pitch are treated as a pair. Diameter narrows the family; pitch or TPI separates fasteners that can look almost identical at a glance. Head width, wrench size, color and country of origin are useful clues but are not substitutes for thread measurements. Clean coatings, dirt and damaged crests enough to obtain a repeatable reading, and measure more than once if the result sits between common sizes.

When two standards appear close, use a known mating nut, bolt or thread checker only as a gentle confirmation tool. Correct machine threads should engage smoothly by hand for several turns. If the part begins to bind almost immediately, stop instead of using a wrench to “prove” the size. A nearly matching metric and inch thread can damage both components before the mismatch becomes obvious.

Record the complete specification

For a machine-thread fastener, record the nominal diameter, pitch or TPI, and the required length. Also note the head/drive style, material and strength or grade requirements when replacement matters. That complete description is far more useful than a measurement such as “13 mm head” or “looks like a quarter inch.” For equipment with a service manual or parts catalog, compare your measurements with the documented specification before ordering or modifying the hole.
