Internal vs External Threads Explained
Internal vs External Threads Explained.
The distinction matters during repair because damaged external threads are usually dressed, chased or the fastener replaced, while damaged internal threads may require chasing, re-tapping or an insert depending on how much parent material remains.
Quick comparison
| Method | Best use | Watch for |
|---|---|---|
| External thread | Bolt, screw, stud | Inspect crests and flanks; replacement is often economical |
| Internal thread | Nut or tapped hole | Damage can be harder to see; parent material determines repair options |
Technical decision depth

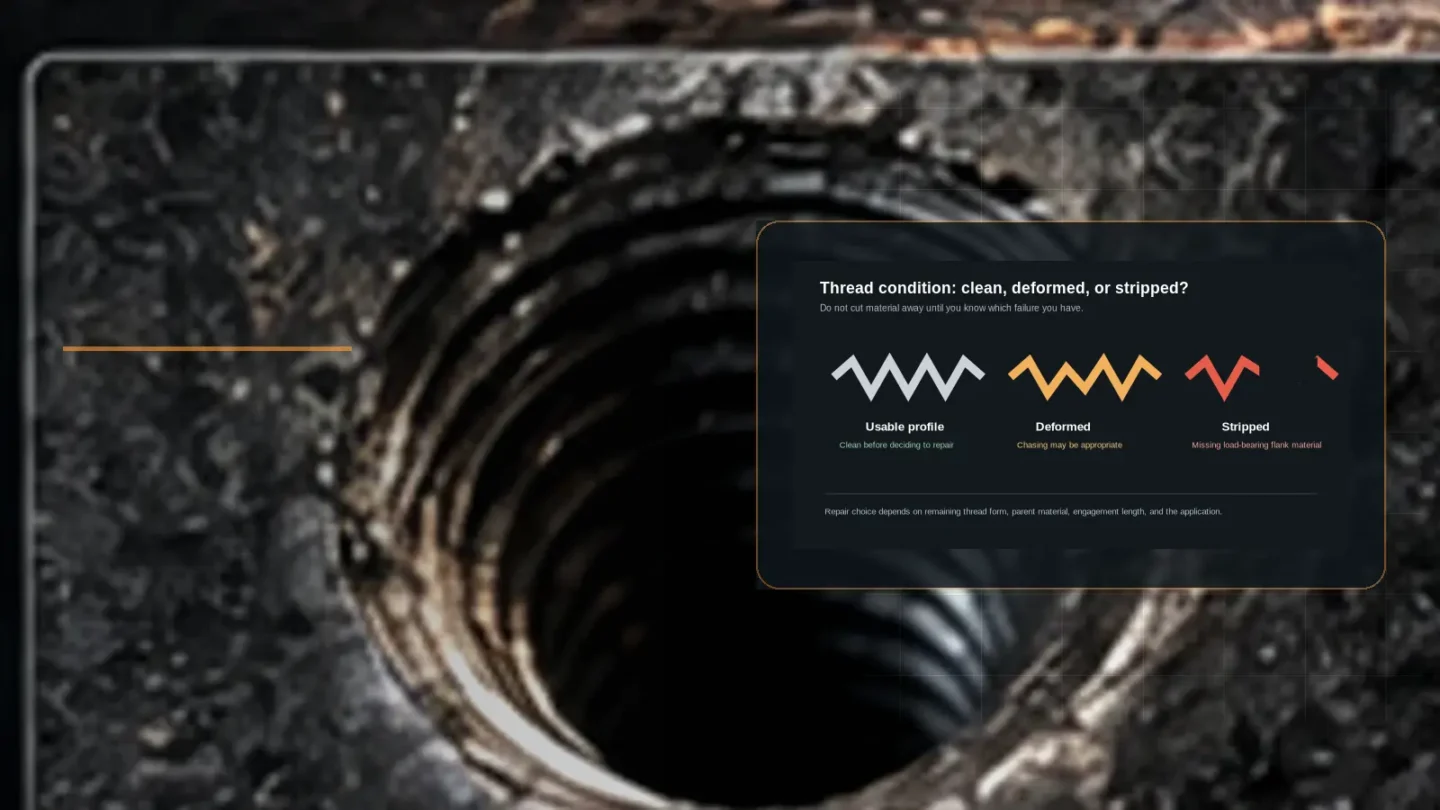

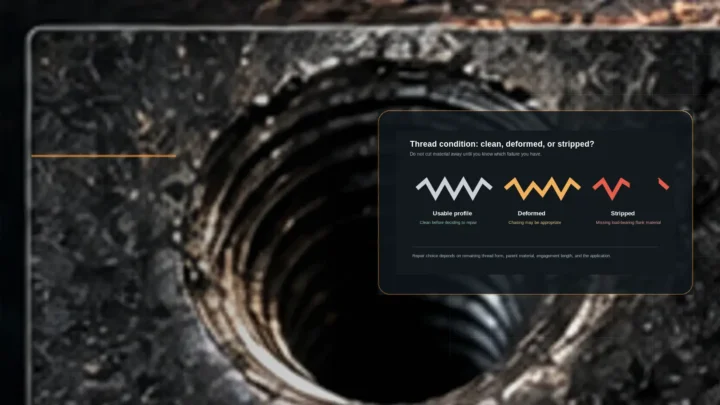

Thread repair should begin with a material-loss diagnosis. Dirt, corrosion products, cured sealant and small burrs can make a sound thread feel damaged. Light deformation may still leave most of the original flank geometry available. Stripped threads are different: the load-bearing material is gone. Cleaning, chasing, cutting and inserting therefore belong to different stages of the decision tree. A cleaner-looking hole is not automatically a stronger one.
Geometry is just as important as nominal thread size. Check usable depth, wall thickness, whether the hole is blind or through, and whether the repaired fastener must retain its original location. Insert systems preserve nominal internal size by creating a larger preparation thread around it, so the surrounding boss must have enough material for that system. If the hole is already enlarged, eccentric, cracked or close to an edge, standard repair-kit instructions may no longer describe the actual condition. At that point the component—not just the thread—needs to be evaluated.
Technical references
Use the specifications for the exact fastener, tool, lubricant, adhesive or repair system in your application. These references support the terminology and general method choices in this guide.
Use two measurements, not one guess
Fastener identification is most reliable when diameter and pitch are treated as a pair. Diameter narrows the family; pitch or TPI separates fasteners that can look almost identical at a glance. Head width, wrench size, color and country of origin are useful clues but are not substitutes for thread measurements. Clean coatings, dirt and damaged crests enough to obtain a repeatable reading, and measure more than once if the result sits between common sizes.
When two standards appear close, use a known mating nut, bolt or thread checker only as a gentle confirmation tool. Correct machine threads should engage smoothly by hand for several turns. If the part begins to bind almost immediately, stop instead of using a wrench to “prove” the size. A nearly matching metric and inch thread can damage both components before the mismatch becomes obvious.
Record the complete specification
For a machine-thread fastener, record the nominal diameter, pitch or TPI, and the required length. Also note the head/drive style, material and strength or grade requirements when replacement matters. That complete description is far more useful than a measurement such as “13 mm head” or “looks like a quarter inch.” For equipment with a service manual or parts catalog, compare your measurements with the documented specification before ordering or modifying the hole.
Technical decision note
Technical decision note: External threads are formed on bolts, screws and studs; internal threads are formed in nuts, tapped holes and inserts. Damage on one side can mark the other, so inspect both mating parts after cross-threading or seizure. Restoring an external thread with a die or thread file is a different operation from chasing or tapping an internal hole, and the tooling must match the exact thread system and pitch.
